Chairs, Spacers, Slab Bolsters - Rebar Support Accessories

Rebar support is welded steel rod structure, used in construction industry, as joint linking single or multi-layer reinforced steel bars. With great strength, flexibility, anti-static, and environmental protection, the steel bar support can greatly improve the quality of the project, save cost and time. By using of steel bar support, the construction time can be saved and the speed can be accelerated to reduce the construction cycle.

Product Variety

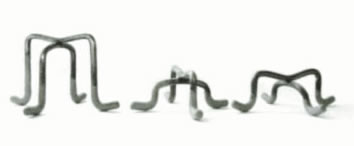

Bar Chairs are used to support wide-spaced light steel in slab/deck construction. Available in 3/4", 1", 1-1/2", and 1-3/4" heights. Also called steel rod chair.

High Chairs for Metal Decking

Individual High Chairs are designed to support upper slab steel from mat steel. It also may be used on fill to obtain leg bearing. Made to order in heights from 2" to 20". Height is from underside of cross bars to seat for reinforcing bar at top of chair. Also available with plastic tip or epoxy coated.

Slab Bolster is used for supporting lower slab form. Legs are spaced 5" on center. Available in 3/4" to 3" heights in 5'-0" lengths.

Slab Bolster with Bearing Plate, Used for supporting lower slab steel on fill or other soft material. Available in 5'-0" lengths only.

Slab Bolster without plate

Slab Bolster Upper

Used for supporting one layer of steel above another and spacing them to required distance. May be used on soft material or fill.

Standard leg spacing is 5" on centers. Fabricated in standard 5'-0" lengths.
