Wire Ties for Attaching Posts and Mesh Fence Fabrics

We supply wire ties of a variety of gauges and styles for security fencing uses. Twisted ties for mesh panels, wires and fence posts.

Chain Link Fence Twist Ties

Twist Ties are commonly used in residential fences, also for prison fencing and other high security fences. The pre-shaped fence ties used by installers on chain link net barrier projects and commercial fences.

Aluminum Hook Ties

Hook Ties, 9 gauge wire, size 6-1/2", used as chain link wire ties, installed on fence posts and rails.

Twisted binding wire ties are faster to use than hook ties. The pre-tied design allows more firm fixing around the posts or pickets, and hence brings more security of the fence barrier.

Available in several gauges and coatings to fit a variety of posts and rails styles:
• Round Post & Rail
• H Post
• T-Post
• C-Post & C-Rail

Materials

Galvanized steel in 9 gauge, 6 gauge, 11 gauge
Aluminized steel in 9 gauge
Vinyl Coated in 9 gauge, galvanized core coated with Black, Green.
Stainless Steel in 9 gauge.

Main Market: USA, Europe and Australia.

Sizes of Pre-Tied wire, Galvanized

8 Gauge
Wire Size: .162"
Variation Tolerance: +/-.003"
Tensile Range: 70ksi max.
Zinc plated: > 25g/square meter
Lengths available: 2', 3', 4', 6', 8' ... 20'

12 Gauge

Wire Size: .105"
Variation Tolerance: +/-.003"
Tensile Range: 75ksi max.
Zinc plated: > 25g/square meter
Lengths available: 2', 3', 4', 6', 8' ... 20'

12 Double Gauge

Wire Size: .105"
Variation Tolerance: +/-.003"
Tensile Range: 75ksi max.
Zinc plated: > 25g/square meter
Lengths available: 2', 3', 4', 6', 8' ... 20'

9 Gauge



Tension Wire Ties

Wire Ties for Attaching Chain Link Fabric

9 Gauge Tension Wire Ties, for Securing Top and Bottom Tension Wire to Rhombic Mesh Fence Panels, Pre-shaped, Galvanized Finish

Sizes
Gauge: 9ga for fences; 9 gauge and 11 gauge.
Finish: Galvanizing, pvc coating.
Fixing:
Preformed steel wire, galvanized or pvc coated, to go around the tension Wire and the knuckle of the chain link fabric.
The two ends shall be firmly twisted with the twisting tool.
The tie shall be positioned on the Tension Wire with the twisted end protruding in a direction parallel to the fence preventing risk of injury to passing personal.



Fence Post Ties for Wires and Mesh Panels Security

T-Post Ties for T Posts and Mesh Panels

Size: 11 gauge T-Post Ties
Surface treatment:

    •  Electro galvanized

    •  Hot dip galvanized

    •  Bituminous painted (Black/ Red/ Green, etc)

    •  PVC Coated


Used for support T-Post (1.33 lbs/ft) and wire mesh fabrics: highway fence, woven wire fence, non climb barbed wire, farm (field) fence, cattle fence, deer fencing, etc.

Green Bitumen Painted Steel T Post

Studded T Post, 1.33lb per ft, green bitumin painted, American Style, for Field Fencing Uses

H-Post Ties, Used for Mesh Fences with H Posts

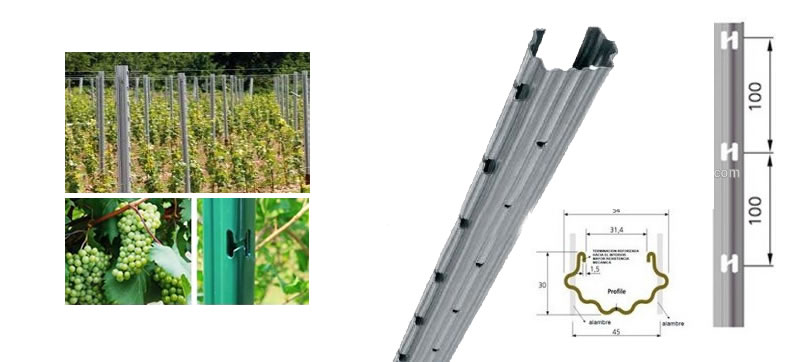

Vineyard Support Post

Steel stake, hot dipped galvanized, plant support trellis

Sizes:
Gauge: Same gauge as the mesh panels.
Surface: Same finish or coating as mesh fences.

Side Ties for Fence Pickets
For post, picket fence and various commercial, industrial barriers.

Wrought Iron / Aluminum / Steel Picket Fence

Residential Fencing Panels

Steel Pickets 25 x 25 x 1 . 2mm, Panel Size 2400L x 2100H, 40x40x1.5mm Rails, 60x60x1.5mm posts. Used for residences and perimeter security fencing uses
